Super High Power Fiber Laser Cutting Machine 20KW/20000W

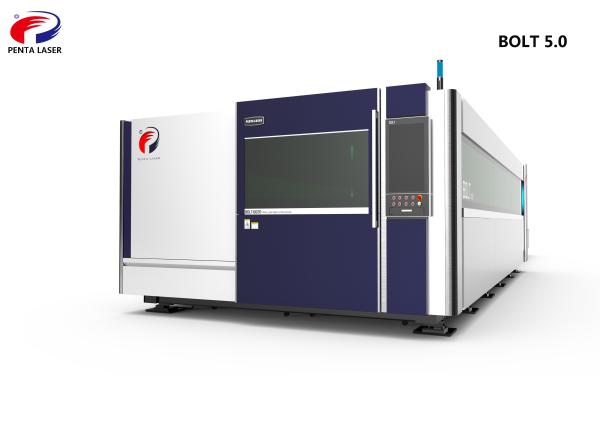

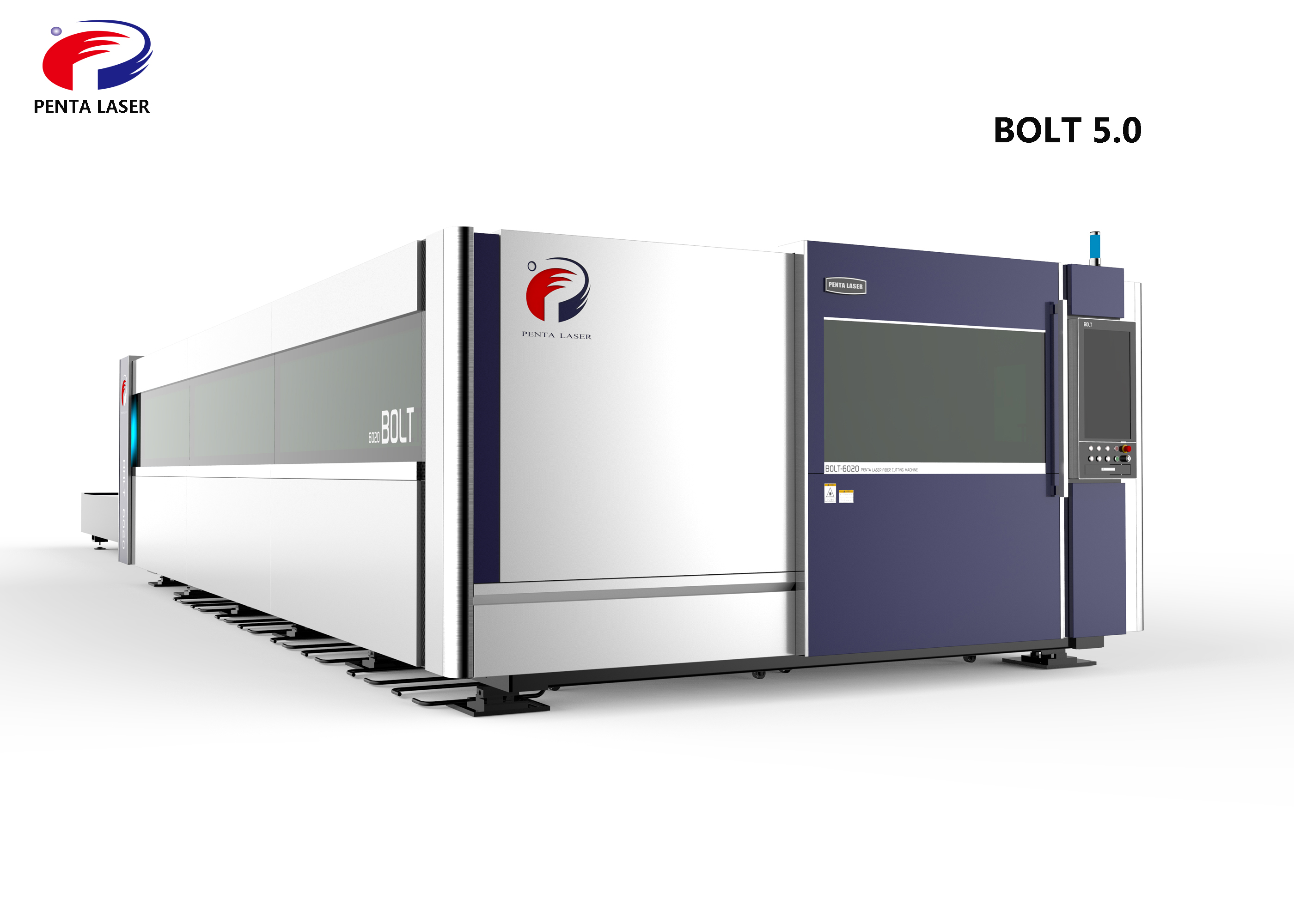

Bolt 5.0 is a new model of PENTA in 2019, it integrates in the bolt structure that has been performing very well in the last year in the market, a lot of new functions that today are integrated then improve the performances.
The Power of the machine is increasing, PENTA LASER launched the 20kw super high power fiber laser cutting machine in 2019 and grab the market quickly. The cutting ability of penta laser 20000W is SS 70mm / MS 100mm. The new BOLT adopted with complete new CNC that reacts and moves reacts in microseconds and allows to perform extremely advance functions, for example super fast plus function that allow to cut at extremely high speed even thick material,saving time for the piercing and lead in, this function have been developed in a very reliable way and go now in production in the new machines from PENTA with extremely high productivity and performances; a new developing function --raster function is a unique function for making picture quality image with the cutting machine which nobody else can do on such machine in the market, it can make QR codes marking on the machine, this function can be nested within cutting and make one function for the machine to generate a very precise parts and finish parts, another new functions like the IQ cutting, a very high quality performance of our machines up to 6kw which are able to realize holes as little as 0.2mm with very high precision and which is unique function on the market for the machines
Technical Specification
| Model | BOLT 6020 |
| Rate output power | 20000 W |
| Rapid Speed | 200 m/min |
| Maximum Acceleration | 4.0 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 70 mm |
| Maximum cutting thickness of stainless steel | 100 mm |
| Working Table | 6000 mm × 2000 mm |
Features
- IPG laser source from 2kw to 20kw at your choice
- High configuration: 95% imported components
- Superfast + cutting model
- 360° Anti-collision 2.0 (updated version, 10 times faster than Swing and Fiber plus)
- Lifelong free remote diagnose smart cloud service
- Fully copper and graphite protected machine body
- Auto nozzle cleaning function
- Super-fast pallet exchanging (16 second finishing)
- Smart camera nesting
- High dynamic performance and anti-vibration design
PENTA LASER
Penta Laser (Wuhan) was set up in 2007 by Italian El. En. Group, mainly dedicated in manufacturing and supplying High Power Laser cutting machine; As been present in China for over ten years, Penta Laser has a significant manufacturing capacity and an efficient selling network in one of the the most dynamic markets in the world for manufacturing activities. Penta Laser (Wenzhou) was founded in 2013 to expand the Sales & Service on Asia-Pacific market due to the fastest growth rate in industrial Laser fields. As the largest high power laser cutting machine exporter in China, Penta Laser launch the 1st fiber 8,000W, 10,000W, 15,000W & 20,000W laser cutting machine in China market which represents the leading role in industry laser fields.
Penta Laser's philosophy is to be the laser application expert and create value for clients, and develops lots of advanced laser processing equipment, not only fiber laser cutting machine, but also intelligent pipe laser cutting machine, robot 3D laser cutting machine, laser welding, auto loading and unloading system etc. Penta's products are renowned for its stability, reliability, and fast-response service as well. We have service and training centers in 35 major Chinese cities and more than 10 countries all over the world.
Globally Fastest Assembling
PENTA machine are renowned for its stability, reliability, high efficiency and fast-response service. There are 9 service centers overseas and more than 36 training centers in demestic major cities.
