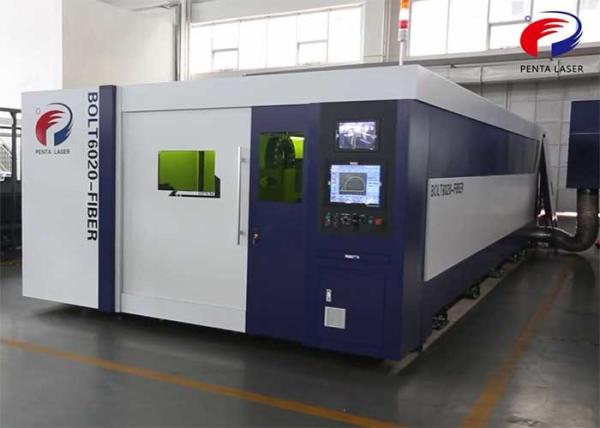

High Accuracy CNC Fiber Laser Cutting Machine 200m/Min Rapid Speed

Name: High Accuracy CNC Fiber Laser Cutting Machine 200mMin Rapid Speed
Brand: Penta Laser
Price: 1 USD

High Accuracy CNC Fiber Laser Cutting Machine 200m/Min Rapid Speed Manufactures

Brand Name : Penta Laser

Model Number : BOLT 6020

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 2000 Sets per Year

Delivery Time : 50 Days Upon Receiving Down Payment

Packaging Details : Standard Wooden Package for Sea Transportation

Name : BOLT CNC Fiber Laser Cutting Machine

Power : 10000W

Structure : Gantry

Loading Ability : Average 2355Kg

Axial Rack : Accuracy DIN 6h Level

Servo Motor and Drivers : YASKAWA Japan

Contact Now

European Technology Word Leading High Power Metal Fiber Laser Cutting Machine

The State-of-the-art laser cutting machine designed for both thin and thick metal. Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.

Features

- IPG TRUMPF RAYCUS Laser Source 1kw to 12kw at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

Technical Specification

Model	BOLT 6020
Rate output power	10000 W
Rapid Speed	200 m/min
Maximum Acceleration	4.0 G
Accuracy	±0.03 mm/m
Mechanical Repeatability	±0.01 mm/m
Maximum cutting thickness of mild steel	25 mm
Maximum cutting thickness of stainless steel	30 mm
Working Table	6000 mm ×2000 mm

Advantages

High speed movement and quick startup and shutdown

Equipped with smart cutting head original imported from Europe

Pallet exchange at the same time to decrease the exchange time

Structure design is more compact and saves more space

Working table is lower and easier for loading and unloading process

Samples

High Accuracy CNC Fiber Laser Cutting Machine 200m/Min Rapid Speed
