Elevator Industry Processing Metal Cutter CNC Fiber Laser Cutting Machine
Penta Plus laser cutting machine equiped with IPG laser source from 1kw to 12kw and adopted imported fiber cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.The Smart Manager is originally imported from Europe. This software is based on the Windows XP system and can fully interface with Italy CNC system which original imported also.
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Therefore the real control of the machine, the laser source and software update is more convenient and fast Friendly interface, easy to learn and operation; easy to edit the numerical control program and high readability cutting parameters database is available, at the same time the real time adjustment to the cutting quality. Easier and faster in automatic edge-finding function.
Fiber Plus Model Features:
-Equiped with IPG laser source from 1kw to 12kw
-Machine Frame designs with suction system and cooper plate protection
-Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions
-Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available
-CNC control system and operation software, Lantek Nesting software
-Fast pallet exchanger and full enclosure
-Cutting database help users choose optimal cutting parameter
-Double servo motor driver, bring higher speed and acceleration,
-Rapid Speed:120m/min,Acceleration:1.7G
-Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc
-Double driving synchonous technology make sure high speed and precision cutting

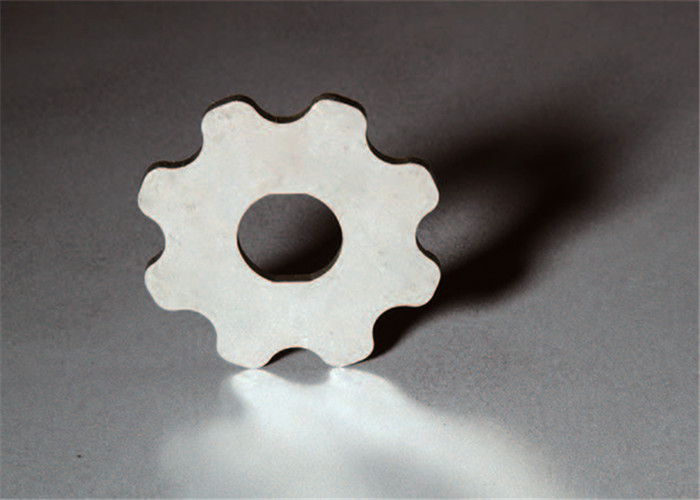

Samples
Technical specifications
| Model | PLUS 6025 |
| Power | 2000W |
| Rapid Speed | 120m/min |
| Maximum Acceleration | 1.7G |
| VDI 3441 Accuracy | ±0.03mm/m |
| Mechanical Repeatability | ±0.01mm/m |
| Maximum Thickness Mild Steel | 18mm |
| Maximum Thickness Stainless Steel | 8mm |
| Table Travel | 6000mm × 2500mm |
Application
PENTA LASER PLUS Series mainly for cutting metallic material such as mild steel, stainless steel, aluminum alloy, titanium alloy, high temperature alloy ect. It widely used in textile machinery, advertisement, kitchenware, household appliances and laser job shop etc.
