Long Running High Efficiency 8000W Metal Plate Laser Cutting Machine
Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.
With years of experience as a laser machine manufacturer, PENTA LASER has cemented its position as the world market leader in industrial high power laser cutting machinery.
Sheet metal laser cutting has many advantages that has led to great results. High accuracy is one of the most important ones. This allows the laser to cut off unlimited and complex shapes, clean cutting that requires little or no finishing and generating a minimum amount of heat. All this in short processing times and with optimum processing quality. PENTA laser has proven itself in a wide range of industries including automotive manufacturing, aerospace, light-fixture, kitchen ware, stainless steel, decorative maerials, case and cabinet ect. In the broad industrial application of laser technology, PENTA plays a decisive role in most fields.
Features
- Double servo motor driven synchronously, bring higher speed and acceleration
- Double driving synchonous technology make sure high speed and precision cutting
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
Technical Specification
| Model | BOLT 6025 |
| Rate output power | 8000 W |
| Rapid Speed | 180 m/min |
| Maximum Acceleration | 2.2 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 25 mm |
| Maximum cutting thickness of stainless steel | 25 mm |
| Working Table | 6000 mm ×2500 mm |
Advantages
Stable Mainframe
The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.
Efficient Control System
New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners
Imported Operating System Smart Manager
Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.
Imported nesting software function
Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate
Pre-perforation System
Accomplish the pre-perforation as settled
Application
Penta BOLT Series mainly for cutting metallic material such as mild steel, stainless steel, aluminum alloy, titanium alloy, high temperature alloy ect. Widely used in textile machinery, machine manufacturing, elevator equipment manufacturing automobile, machine tool, shipbuilding, decoration, advertisement, oil drilling equipment, kitchenware, household appliances and laser job shop.

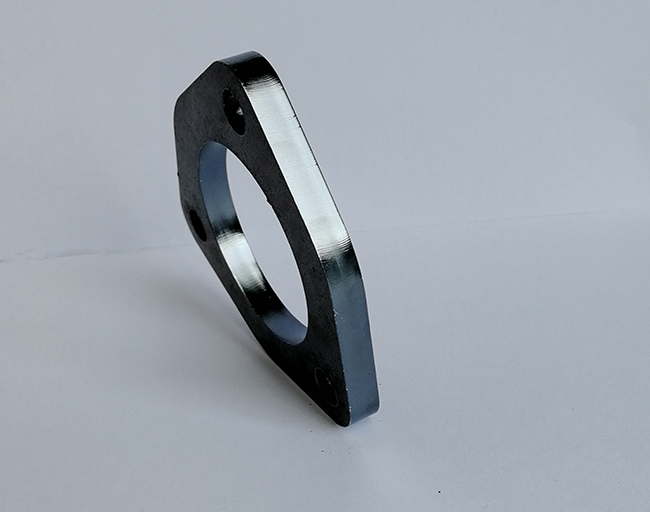

Samples
